VBG Mounting Plate for drawbar eye
Mounting plate
Part No. 16-091000

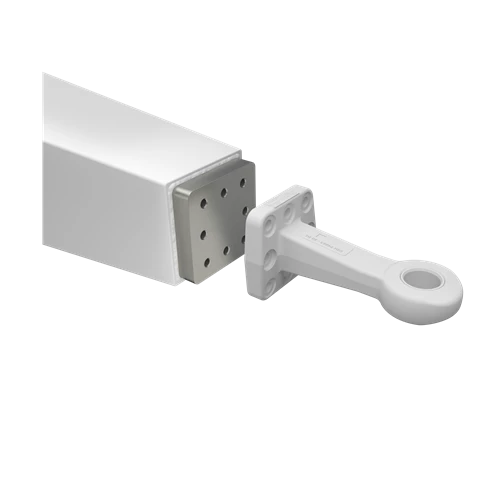

The mounting plate is welded into the drawbar for the fitting of a 50mm VBG drawbar eye DBE 917 and DBE 1002.
Dimension 170x170x35mm
For further instructions regarding welding, see the fitting instructions.
Dimension 170x170x35mm
For further instructions regarding welding, see the fitting instructions.
Technical data
Specifications
| Weight | 6 kg |
Option / Accessories
Option
| Part no. | |
|---|---|
| 16-091700 |
Documentation / Manuals
| Mounting Instruction | Format | Size |
|---|---|---|
| VBG Flanged Drawbar Eyes - Mounting instruction - 38-236300.pdf | 2,6 MB | |
| Information Drawing | Format | Size |
| VBG Mounting plate - Information drawing - 16-091000.pdf | 127.9 KB | |
| VBG Mounting plate - Information drawing - 16-091000.dxf | dxf | 1 MB |
