Shown variant: VBG Power plug 14 SAL box Part No. 28-034000

VBG Power Plug SAL VBG Power plug 14 SAL box Part No. 28-034000

VBG Power Plug SAL

28-034000

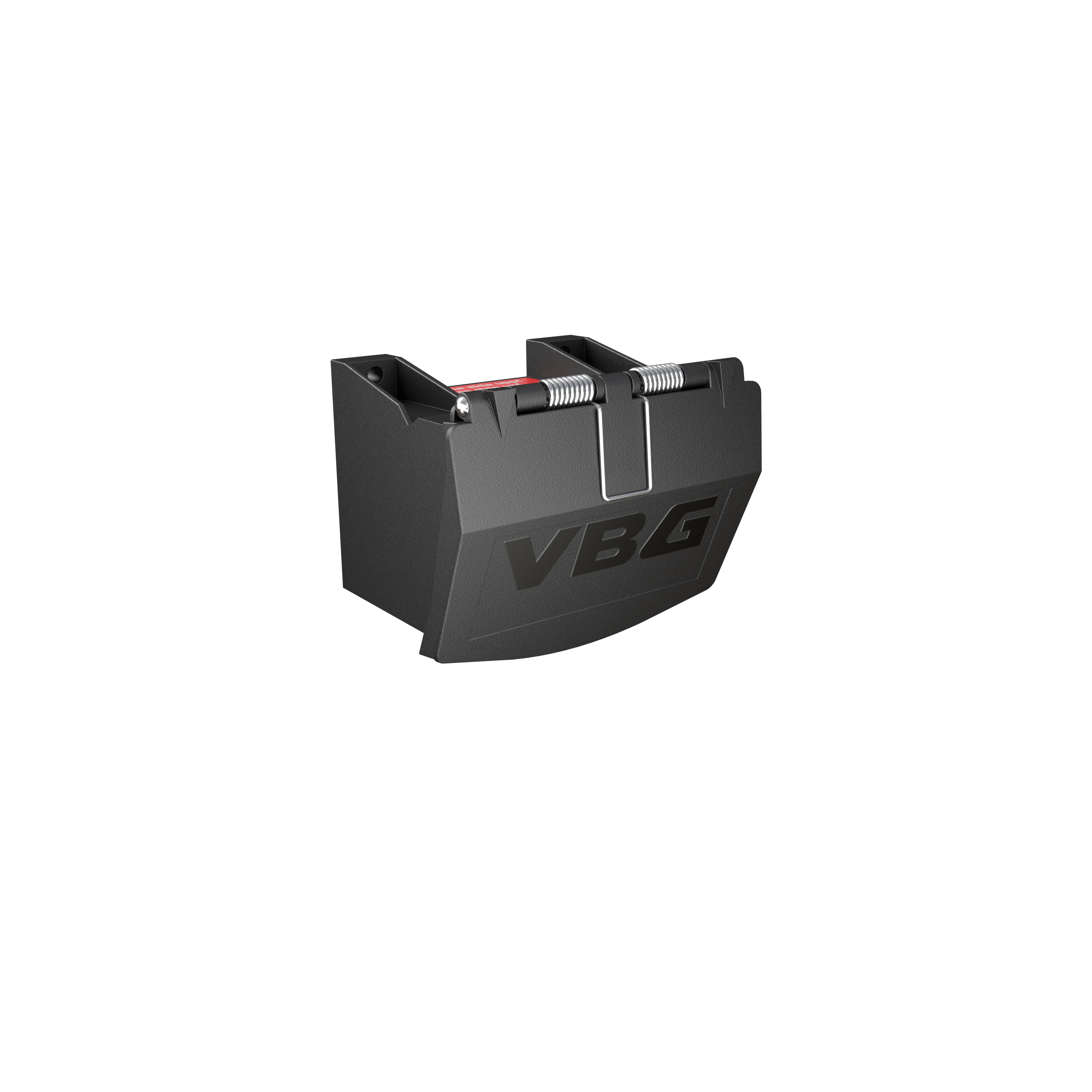

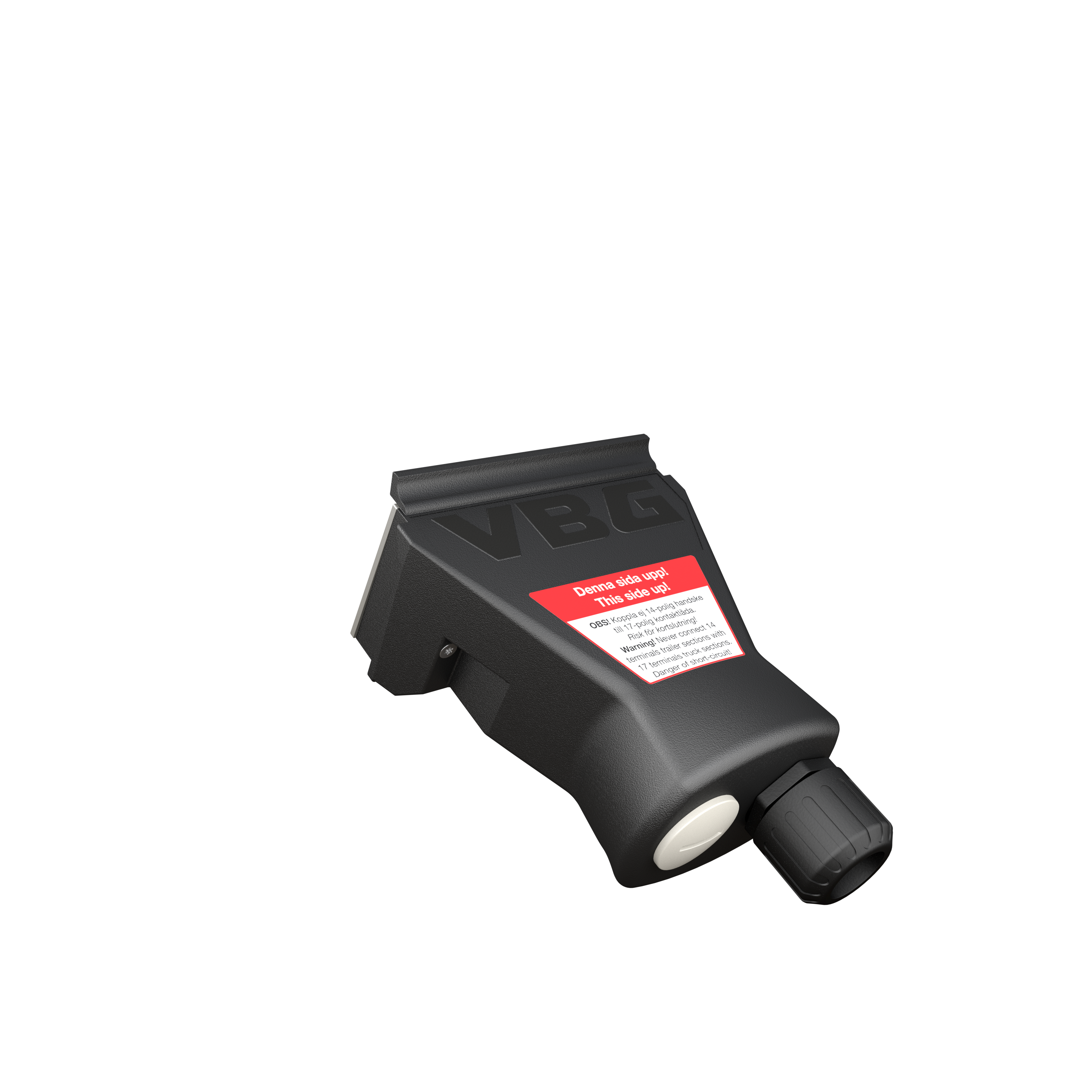

VBG Power plug 14 SAL box
Part No. 28-034000

VBG electrical connectors are designed from the outset to cope with extreme and tough environments with moisture, snow, salt, and winter temperatures. Connectors are available with 14 or 17 pins. The large flat pins in brass provide ample contact surface and good resistance to oxidation. Coupling and decoupling are performed with one hand and the pins are cleaned automatically. The simple operation and reliable design make things easier for the driver and minimise the risk of downtime.
SAL (Sealed and Locked) connectors are fitted with a lock hook and special seals.

Technical data

Specifications

Sealing	SAL
Number of poles	14 terminals
Type	Box
Quantity	1-pack
Weight	0.38 kg

Two cable inlets, Ø 9 mm – 15 mm
Terminal 1 and 12................................................ 9,5 mm 25 A
Single terminal...................................................... 6,5 mm 15 A
Double terminal.................................................... 6,5 mm 10 A
The permitted amperage in VBG’s power plugs is limited by
the earth connection, i.e. a maximum of 25 A.

SAL-version comparable to IP class 54.

Option / Accessories

Option

	Part no.

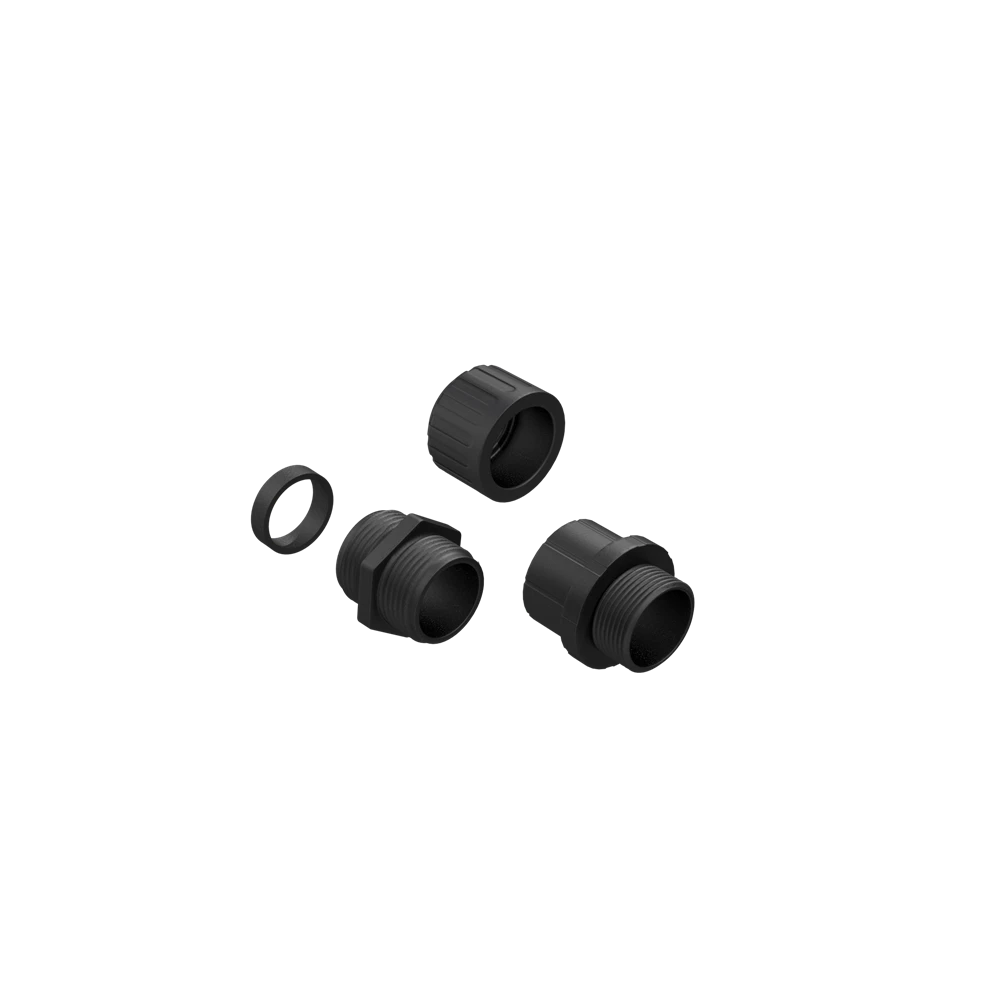

Mounting kit SAL	28-035900

Accessories

	Part no.
Electrical heating coil	28-029900

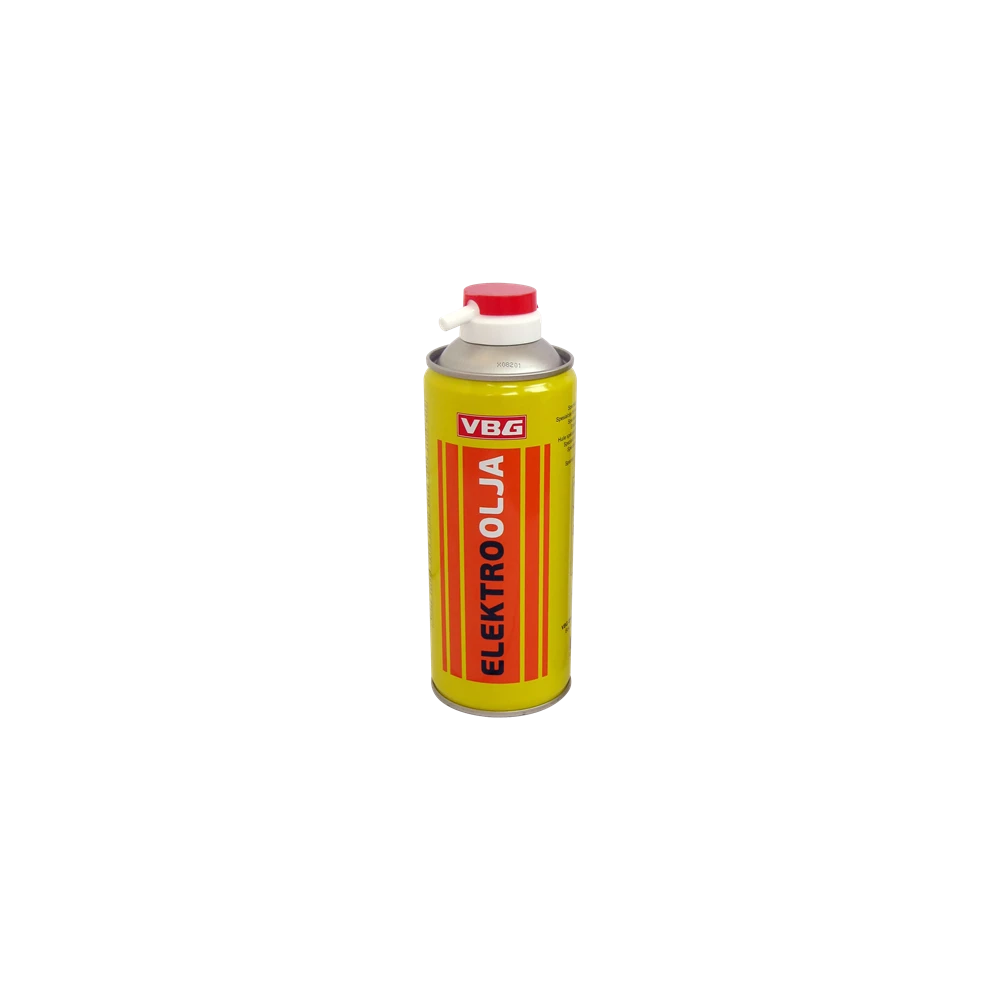

VBG Electro oil	49-005300

Documentation / Manuals

Users Manual	Format	Size
Drivers manual 38-233900.pdf	pdf	26.8 MB
Mounting Instruction	Format	Size
VBG Power plug SAL - Mounting instruction - 38-134100.pdf	pdf	3 MB
Information Drawing	Format	Size
VBG Power plug - 28-034000 - Information drawing.pdf	pdf	262.6 KB
VBG Power plug - 28-034000 - Information drawing (DWG).dxf	dxf	2.7 MB
