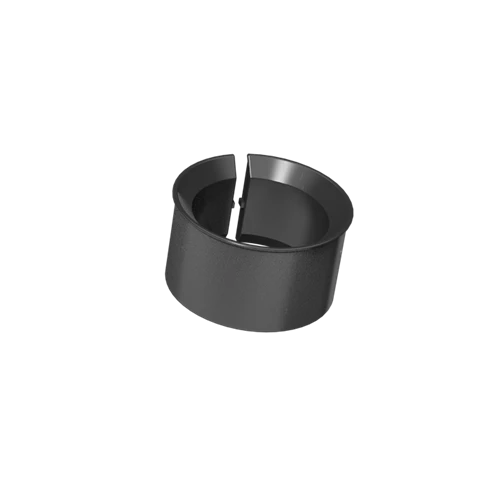

Expandable bushing 40 mm

SP_VBG DBE 130 Bushing_17-013800.png

Expandable bushing 40 mm
Part No. 18-013800

VBG’s Expandable bushing are designed to function optimally together with other components in the coupling system. All parts have been meticulously developed over time to ensure optimal performance and durability with regard to the materials, hardening, and surface finish. And follows the ISO/DIN standard. This means that VBG Expandable bushing are exceptionally durable and extend the service life of your coupling.

Technical data

Specifications

Weight 0.3 kg

Fits to

VBG Optimal Drawbar

VBG Optimal Drawbar

VBG Optimal is adapted for trailers which need to reverse over the drawbar. It is based on VBG’s unique modular concept with a small number of parts, which offers great flexibility and a wide range of options. The drawbars are available in lengths from 2150 mm to 4520 mm in increments of 50 mm and with c/c distances 700, 900, 980, 1050, 1100 and 1200 mm. Supplied pre-assembled The drawbars are supplied pre-assembled in the requested lengths. To simplify transportation and warehouse storage, the front slider is telescopically inserted in the rear member. Easy to install Easy to install on trailers. No welding or drilling required. All installation – including accessories – is done with bolted joints. Flexible Thanks to their modular design and telescopic construction, the drawbars are available in lengths from 2150 mm up to 4520 mm. The attachment’s c/c distances are available as 700, 900, 980, 1050, 1100 and 1200 mm. Several options The drawbar can be fitted with either Vibra blocks or Bria brackets for attachment to the trailer. Five different eyes are available: VBG MFC, SS Ø57 mm, SS Ø57 mm angled 5 degrees, ISO Ø50 mm and DIN Ø40 mm. SS Ø 57 mm angled 5 degrees is used where there is a low attachment point on the trailer. Hose protection The Optimal drawbar has been designed so that hoses and cables can be inserted in the bar for protection, which reduces the risk of hose rupture and breakdowns. Spare parts The module design of the drawbar, with a small number of parts, simplifies the stocking of spare parts and contributes towards cost-effective overall economic solutions. VBG Optimal Drawbar consists of 1 Rear member, with the fitted Vibra Ø 32 mm rear bracket, including pivot bolt (alternatively Briab including installation kit) 1 Front slider (with fitted eye and sliding bracket), including bolt kit. 1 Sliding bracket, rear
