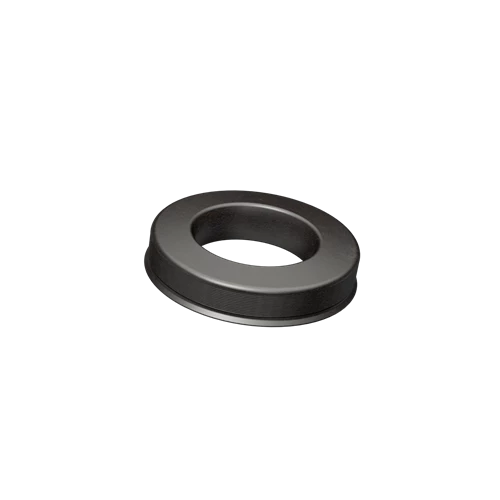

Wear ring 57,5 mm

SP_VBG Bushing_15-010400.png

Wear ring 57,5 mm
Part No. 18-010400

Contact us
VBG’s wear ring are designed to function optimally together with other components in the coupling system. All parts have been meticulously developed over time to ensure optimal performance and durability with regard to the materials, hardening, and surface finish. And follows the Swedish standard. This means that VBG wear ring are exceptionally durable and extend the service life of your coupling.

Technical data

Specifications

Weight 0.9 kg

Fits to

VBG Drawbar eye DBE 153

VBG Drawbar eye DBE 153

Drawbar eye Ø 57 mm. In accordance with ECE 55R, class S. In accordance with standards SS 550000-2 category X and SS 550100-2 D57. Fit the drawbar with 3 screws M20, quality 10.9. Use lock nuts (class 10) and flat washers (HB200). Tightening torque 520 Nm. For other mounting requirements see mounting instructions.
VBG Drawbar eye DBE 160

VBG Drawbar eye DBE 160

Drawbar eye Ø 57 mm. In accordance with ECE 55R, class S. In accordance with standards SS 550000-2 category 1 and SS 550100-2 D57.
VBG Drawbar eye DBE 173

VBG Drawbar eye DBE 173

Drawbar eye Ø 57 mm. In accordance with ECE 55R, class S. In accordance with standards SS 550000-2 category X and SS 550100-2 D57.
VBG Drawbar eye DBE 230

VBG Drawbar eye DBE 230

Drawbar eye Ø 57 mm. In accordance with ECE 55R, class S. In accordance with standards SS 550000-2 category 4 and SS 550100-2 D57
VBG Drawbar eye DBE 185

VBG Drawbar eye DBE 185

Drawbar eye Ø 57 mm. In accordance with standards SS 550000-2 category X and SS 550100-2 D57. DBE 185 does not have its own type approval but can be approved together with centre axle trailer.
VBG Drawbar eye DBE 188

VBG Drawbar eye DBE 188

Drawbar eye Ø 57 mm. In accordance with standards SS 550000-2 category X and SS 550100-2 D57. DBE 185 does not have its own type approval but can be approved together with centre axle trailer.
VBG Drawbar eye DBE 190

VBG Drawbar eye DBE 190

Drawbar eye Ø 57 mm. In accordance with ECE 55R, class S. In accordance with standards SS 550000-2 category 3 and SS 550100-2 D57.
VBG Drawbar eye DBE 157

VBG Drawbar eye DBE 157

Drawbar eye Ø 57 mm. In accordance with ECE 55R, class S. In accordance with standards SS 550000-2 category X and SS 550100-2 D57. Supplied complete as per the image with a mounting plate and clamps.
VBG Automatic Drawbar, Type approved

VBG Automatic Drawbar, Type approved

The VBG Automatic drawbar is Type approved, and is an extendible drawbar with two or more fixed installation positions with pneumatic locking. The VBG pneumatic automatic drawbar has a lightweight and strong design, with a low structural height. Easily replaceable bushings and complete repair kits ensure a long service life. It is manufactured to the required dimensions (see adjustment positions) and is available with two or more adjustment lengths with automatic locking. The front slider is available with a drawbar eye of the VBG or ISO type. The rear part is available for c/c distances 950 – 1200 mm, and is supplied with the rear bracket (Vibra block or Briab) welded at the required c/c distance. SMS tested and approved for 18 tonne twin steering axle trailers. For further information and order forms, see installation instructions 38-161800.
VBG Automatic Drawbar

VBG Automatic Drawbar

This product has been discontinued from our range. Here you will find product information such as technical data, documentation, manuals and any spare parts for your product.

VBG Multi D179/D158 Drawbar

VBG Multi D179/D158 Drawbar

VBG Multi D179/D158 is the ultimate solution for those who need a versatile and reliable drawbar for heavy transport. This drawbar is equipped with two drawbar eyes, one 57 mm and one 76 mm or one 50 mm and one 76 mm, which gives you the flexibility to couple to different types of towing vehicles with ease and safety. Fits trailers with c/c distances of between 980/1050/1100/1200/1300 mm. Drawbar lengths vary between 1600 – 3000 mm, in increments of 50 mm. It is very easy to mount using bolted joints, and, to further simplify installation, there is a special centring device which fits into the drawbar eye. Flexible The drawbar can be adapted to most vehicle combinations. With only a small number of standard units it is possible to achieve drawbar lengths from 1600 – 3000 mm (see table) and c/c distances of 980/1050/1100/1200/1300 mm. Several options The drawbar can be fitted with either Vibra blocks or Bria brackets for attachment to the trailer. Two different dimensions for drawbar eyes are available: SS Ø57/76mm (NATO), ISO Ø50/76mm (NATO). Accessories The drawbar can be supplied with a foot step, catwalk and balance spring, or the like, which adjusts the drawbar to the height of the coupling. VBG Multi Drawbar consists of: 1 Front part, incl. bolt set 2 Side members 1 Rear cross member, incl. bolt set 2 Rear brackets with fitted Vibra blocks (Ø 32 mm) or Briab brackets 2 Pivot bolts or Briab installation kit 2 Mounting plates
VBG Multi D179 Drawbar

VBG Multi D179 Drawbar

VBG Multi is a lightweight yet strong drawbar, and fits trailers with c/c distances of between 980/1050/1100/1200/1300 mm. Drawbar lengths vary between 1200 – 3000 mm, in increments of 50 mm. It is very easy to mount using bolted joints, and, to further simplify installation, there is a special centring device which fits into the drawbar eye. Flexible The drawbar can be adapted to most vehicle combinations. With only a small number of standard units it is possible to achieve drawbar lengths from 1200 – 3000 mm (see table) and c/c distances of 980/1050/1100/1200/1300 mm. Several options The drawbar can be fitted with either Vibra blocks or Bria brackets for attachment to the trailer. Two different dimensions for drawbar eyes are available: SS Ø57 mm, ISO Ø50 mm. Accessories The drawbar can be supplied with a foot step, catwalk and balance spring, or the like, which adjusts the drawbar to the height of the coupling. VBG Multi Drawbar consists of: 1 Front part, incl. bolt set 2 Side members 1 Rear cross member, incl. bolt set (performance D only: 179 kN) 2 Rear brackets with fitted Vibra blocks (Ø 32 mm) or Briab brackets 2 Pivot bolts or Briab installation kit 2 Mounting plates
VBG Multi D130 Drawbar

VBG Multi D130 Drawbar

VBG Multi is a lightweight yet strong drawbar, and fits trailers with c/c distances of between 980/1100/1200/1300 mm. Drawbar lengths vary between 1200 – 3000 mm, in increments of 50 mm. It is very easy to mount using bolted joints, and, to further simplify installation, there is a special centring device which fits into the drawbar eye. Flexible The drawbar can be adapted to most vehicle combinations. With only a small number of standard units it is possible to achieve drawbar lengths from 1200 – 3000 mm (see table) and c/c distances of 980/1100/1200/1300 mm. Several options The drawbar can be fitted with either Vibra blocks or Bria brackets for attachment to the trailer. Accessories The drawbar can be supplied with a foot step, catwalk and balance spring, or the like, which adjusts the drawbar to the height of the coupling. VBG Multi Drawbar consists of: 1 Front part, incl. bolt set 2 Side members 2 Rear brackets with fitted Vibra blocks (Ø 32 mm) or Briab brackets 2 Pivot bolts or Briab installation kit 2 Mounting plates
VBG Optimal Drawbar

VBG Optimal Drawbar

VBG Optimal is adapted for trailers which need to reverse over the drawbar. It is based on VBG’s unique modular concept with a small number of parts, which offers great flexibility and a wide range of options. The drawbars are available in lengths from 2150 mm to 4520 mm in increments of 50 mm and with c/c distances 700, 900, 980, 1050, 1100 and 1200 mm. Supplied pre-assembled The drawbars are supplied pre-assembled in the requested lengths. To simplify transportation and warehouse storage, the front slider is telescopically inserted in the rear member. Easy to install Easy to install on trailers. No welding or drilling required. All installation – including accessories – is done with bolted joints. Flexible Thanks to their modular design and telescopic construction, the drawbars are available in lengths from 2150 mm up to 4520 mm. The attachment’s c/c distances are available as 700, 900, 980, 1050, 1100 and 1200 mm. Several options The drawbar can be fitted with either Vibra blocks or Bria brackets for attachment to the trailer. Five different eyes are available: VBG MFC, SS Ø57 mm, SS Ø57 mm angled 5 degrees, ISO Ø50 mm and DIN Ø40 mm. SS Ø 57 mm angled 5 degrees is used where there is a low attachment point on the trailer. Hose protection The Optimal drawbar has been designed so that hoses and cables can be inserted in the bar for protection, which reduces the risk of hose rupture and breakdowns. Spare parts The module design of the drawbar, with a small number of parts, simplifies the stocking of spare parts and contributes towards cost-effective overall economic solutions. VBG Optimal Drawbar consists of 1 Rear member, with the fitted Vibra Ø 32 mm rear bracket, including pivot bolt (alternatively Briab including installation kit) 1 Front slider (with fitted eye and sliding bracket), including bolt kit. 1 Sliding bracket, rear
VBG Multi XF Drawbar

VBG Multi XF Drawbar

VBG Multi XF is a lightweight yet strong drawbar, and fits trailers with c/c distances of between 700 mm – 1300 mm. Drawbar lengths vary between 1269 – 4358 mm, in increments of approx. 62 mm. It is very easy to mount using bolted joints, and, to further simplify installation, there is a special centring device which fits into the drawbar eye. Several options The drawbar can be fitted with either Vibra blocks or Bria brackets for attachment to the trailer. Five different drawbar eyes are available: VBG MFC, SS Ø57 mm, SS Ø57 mm angled 5°, ISO Ø50 mm and DIN Ø40 mm. SS Ø57 mm angled 5° is used when there is a low attachment point on the trailer. Accessories The drawbar can be supplied with a foot step, catwalk and balance spring, or the like, which adjusts the drawbar to the height of the coupling. VBG Multi XF Drawbar consists of 4 Side members 1 Eye 1-2 Cross members 2 Rear brackets with fitted Vibra blocks (Ø 32 mm) or Briab brackets 2 Pivot bolts or Briab installation kit 6 Cross member bolt kits 1-2 Cross member bolt kits
