R58.03
Approved in accordance with UNECE R58.03

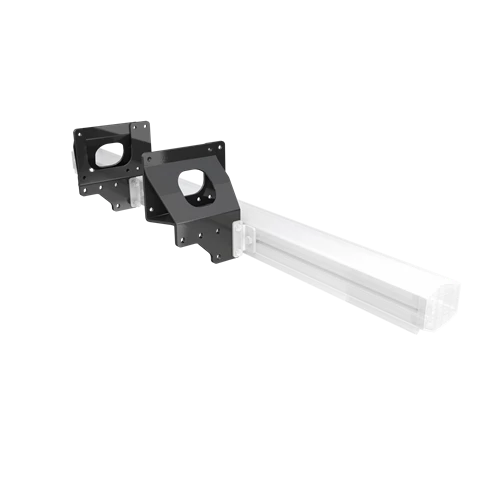

VBG MFC End plate Underrun Protection - EUP 180-MFC

VBG Endplate kit EUP180-MFC H=140

VBG Endplate kit EUP180-MFC H=140
Part No. 21-718178

Contact us

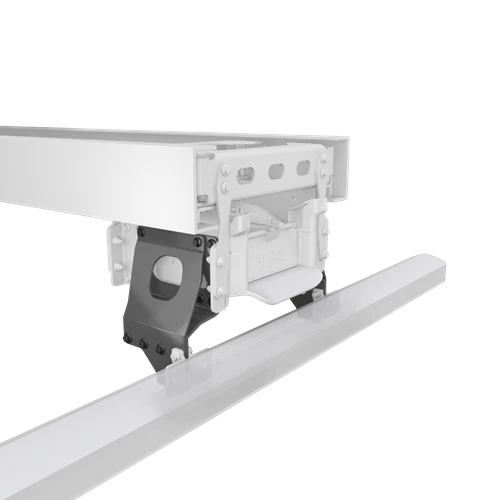

For mounting underride protection on MFC end plates in combination with one of VBG’s underrun protection beams certified according to R58.03.
VBG’s underrun protection system can be mounted on many types of chassis with different frame rigidity (see table under Technical Data)
Supplies with Screw Kit 21-204800 (4x M16x50)

Technical data

Specifications

Screw consumption (pcs) 14
Size M14
G - Measurement 140
Intended for Truck
Weight 27 kg
Regulation UNECE R58 version 3
Type marking VFUS 180
SURFACE TREATMENT Powder coating
Color Gray

VBG Tabell ramstyvhet vit text_Engelska

VEHICLE CHASSIS

Vehicle chassis frame rigidity required for mounting VBG’s underrun protection system according to R58 rev. 3.



Frame inertia moment: Minimum (see table)

Documentation / Manuals

Certificate Format Size
VBG Aluminium beam UHAP 180 - Certificate_English.pdf pdf 1,2 MB
VBG Steel beam UCSP 180 - R58.03 - Certificate_English.pdf pdf 1,2 MB
VBG Steel beam UOSP 180 - Certificate_English.pdf pdf 566,9 KB
Mounting Instruction Format Size
VBG Underrun protection - Mounting instruction - 38-324100.pdf pdf 5,7 MB
Information Drawing Format Size
VBG End plate EUP 180-MFC H140 - information drawing_English.pdf pdf 150,3 KB
VBG End plate EUP 180-MFC H140 - information drawing_English.dxf dxf 1,3 MB
