VBG Backward extension UPS 180 L=300 Part No.

R58.03

Approved in accordance with UNECE R58.03

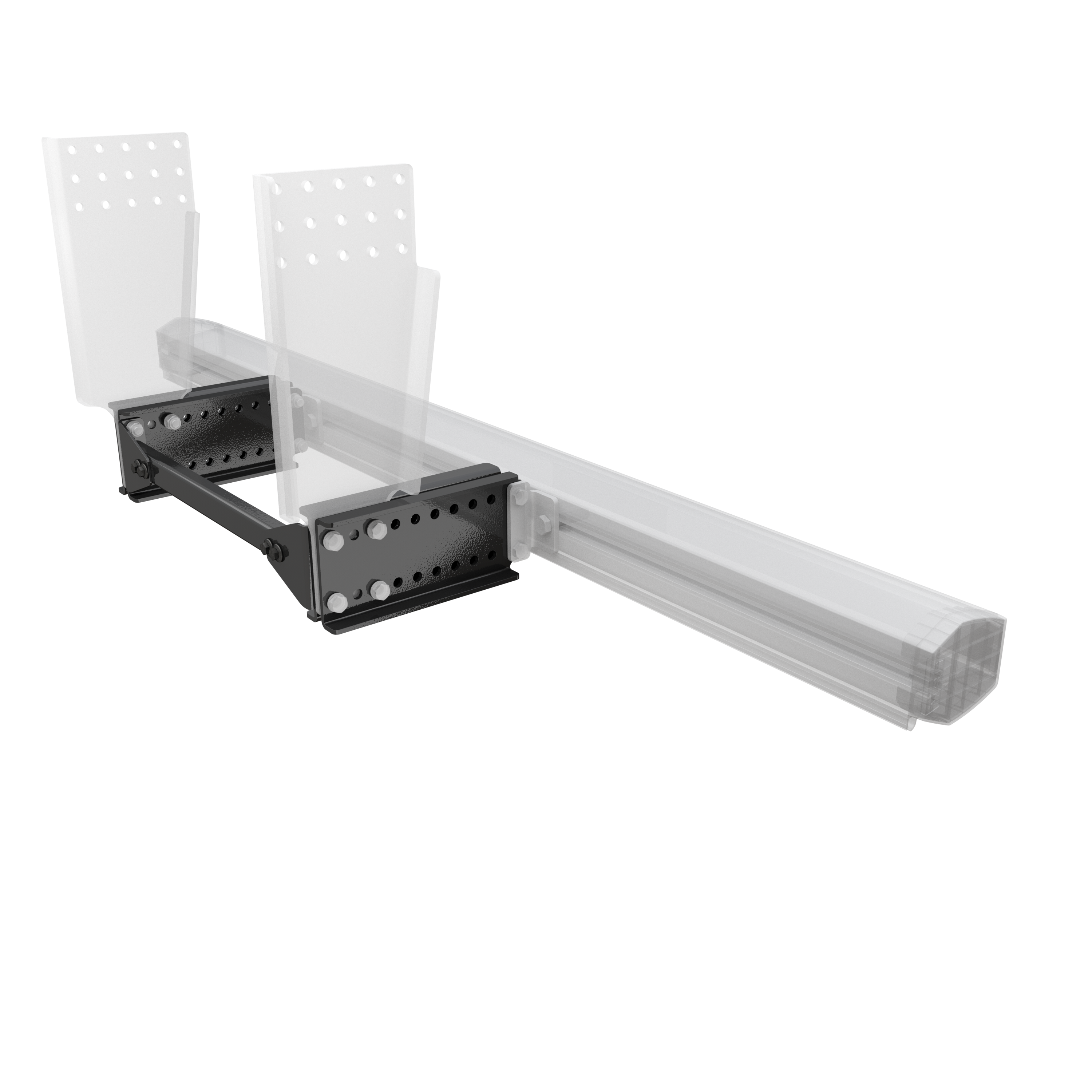

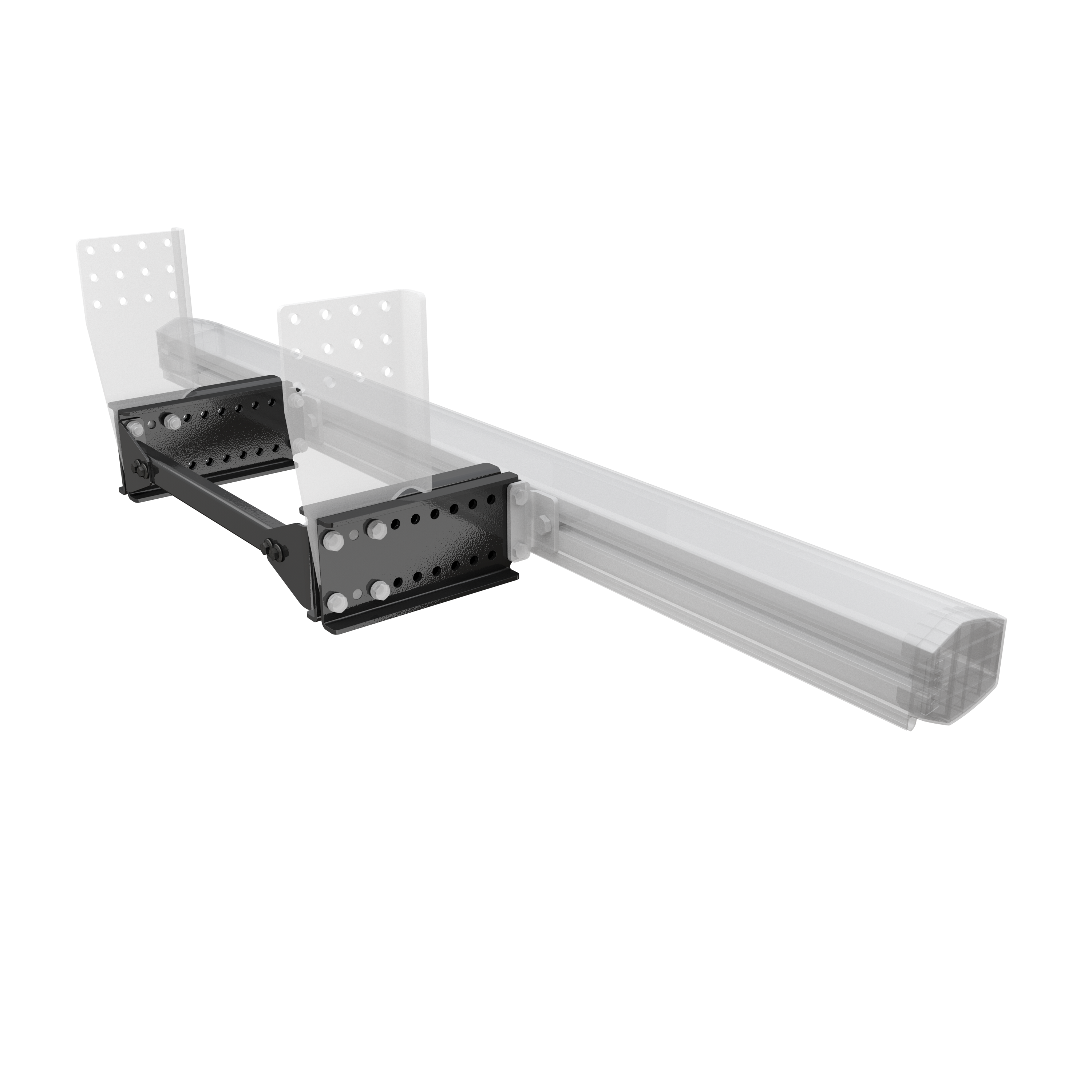

VBG Backward extension UPS 180 L=300

Part No.

For rearward positioning of the underrun protection. The UPS 180 attachment makes it possible to move in increments of 37,5 mm, up to max. 262 mm.
Depending on which endplate you use, different mounting kits and numbers are required. VBG’s underrun protection system can be mounted on many types of chassis with different frame rigidity (see table under Technical Data)

Certificate

Note that the certificate is valid for complete VBG underrun protection systems, according to R58 rev 3.

VEHICLE CHASSIS

Vehicle chassis frame rigidity required for mounting VBG’s underrun protection system according to R58 rev. 3.

Frame inertia moment: Minimum (see table)
